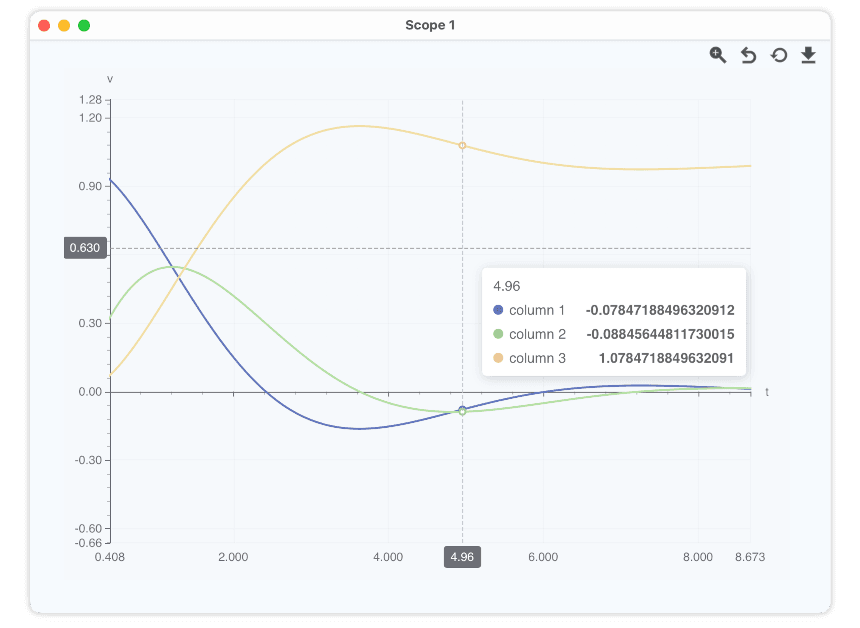

Simit provides visualization tools that display time-varying system variables as waveforms in real time or offline, helping you understand system behavior as you build. Add scopes, configure axes, and compare iterations without leaving the model.

Key Capabilities

• Multi-channel: Plot multiple signals with units and legends.
• Assisted measurements: Add cursors, measure peaks/settling time, and annotate.
• Record & replay: Capture simulation data, compare runs side-by-side, zoom, and export images or data.

“Display simulation signals (e.g., voltage, speed, temperature) as time-domain waveforms in real time or offline, so you can quickly inspect dynamic responses, verify model behavior, and pinpoint design issues.”

Integration Workflow

1. Add a Scope

Drag a Scope block and connect signals of interest.

2. Configure axes and units

Set y-axis limits, colors, and units if available.

3. Add cursors and measurements

Inspect amplitude, frequency, rise/settling time.

4. Freeze a run and iterate

Capture current run, tweak parameters, and overlay results.
